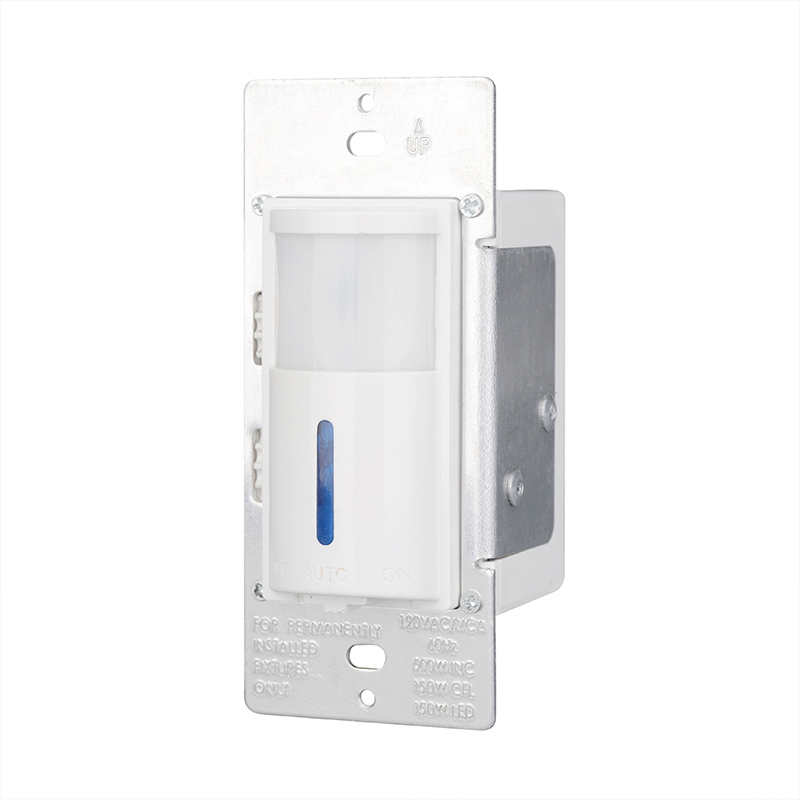

Motion sensor device
The RW3U600 has the flexibility to work in a variety of applications including hallways, stairways, bathrooms, living and dining rooms, and other areas with multiple entries. The RW3U600 vacancy sensor allows true multi-way operation with automatic on/off control.
Occupancy-based control plus multi-way operation.
Two or more RW3U600s connected together will allow enhanced coverage of the controlled space.
Works with most common residential lighting types.
Adjustable time delay of 15 seconds to 30 minutes.
Light level sensing prevents automatic
ON of lights when adequate daylight exists.
Replaces three-way or four-way switches when used with other RW3U600s.
Lighted switch for visibility in darkened rooms. Manual- or automatic-on operation.
Adjustable light level setting of 10 to 150 fc (100 to 1500 lux).
Coverage: 180°, max 600 ft.2 (56m²).
cULus listed. 5-year warranty. Load: Incandescent, fluorescent, compact
fluorescent (CFL), magnetic low-voltage (MLV) and electronic low-voltage (ELV), 1/6 hp. RW3U603 only
Time delay 15 seconds, 5, 15, 30 minute
Switch type: 3-way
Technology: passive infrared
Pattern degree: 180 degrees
The maximum sensitive distance: 6.1 meters
The maximum control power: 500W
Voltage: 120V AC 60Hz
Wiring neutral/ground: ground required
Standards and certifications: UL/cUL
LED test indicator
Work temperature: from -10°C to 40°C
Work humidity: 0-85%
Work luminous intensity: 1 lux-1000 lux
For indoor use only
Incandescent fluorescent LED
